Predictive Maintenance: Proactive Servicing Through Intelligent Data Analysis

Key Takeaways

• Predictive maintenance replaces rigid maintenance intervals with data-driven forecasts and significantly reduces unplanned downtime.

• The remaining useful life (RUL) is calculated rather than estimated, enabling maintenance to be performed in a technically optimal and economically efficient manner.

• Key performance indicators such as OEE, MTBF and MTTF improve measurably, while emergency interventions and spare parts costs decrease.

• Predictive maintenance creates transparency regarding usage and wear, thereby forming the foundation for remanufacturing, second-life strategies and product-as-a-service models.

H2: Predictive Maintenance: The Evolution of Maintenance

Unplanned downtime is among the most cost-intensive risks in capital-intensive production systems. At the same time, many maintenance strategies are still based on fixed maintenance intervals that do not take the actual condition of the equipment into account.

Predictive maintenance (PdM) represents a fundamental strategic shift in this context.

PdM describes a data-driven maintenance strategy in which maintenance decisions are made based on the actual condition of the equipment. Sensors continuously capture physical parameters such as vibration, temperature, or power consumption, thereby enabling a precise assessment of the wear condition.

H3: Overview of Maintenance Strategies

The choice of an appropriate maintenance strategy is a key economic lever. It directly influences the cost structure, equipment availability, and operational risk.

While traditional approaches are highly standardized and time-driven, a clear shift toward flexible, data-driven strategies is emerging in the context of Industry 4.0. These enable a more precise allocation of resources and systematically reduce waste.

Comparison of Maintenance Strategies

1. Reactive Maintenance – Breakdown Maintenance

Reactive maintenance follows the principle of “run to failure.” Interventions are only carried out after a component has failed.

In the short term, this approach appears cost-effective, as neither planning nor investments in sensor technology are required. In practice, however, it entails significant risks: unplanned downtime, production interruptions, delivery delays, and costly repairs.

In addition, secondary damage to adjacent components is common, further increasing the actual costs considerably.

2. Preventive Maintenance

In preventive maintenance, maintenance activities are carried out at fixed intervals, for example after specific time periods or operating hours.

To ensure standardization, the so-called 10% rule is commonly applied in practice. According to this rule, a maintenance measure is considered compliant only if it is performed within a tolerance range of ±10% around the planned interval.

For a 30-day interval, maintenance must therefore be carried out between day 27 and day 33. Performing it too early leads to unnecessary use of resources, while delayed maintenance increases the risk of failure.

Despite its organizational stability, a key weakness remains: preventive maintenance is based solely on time schedules and does not take the actual condition of the equipment into account. As a result, components are sometimes replaced even though they are still functional.

3. Condition-Based Maintenance

Condition-based maintenance represents a further development of time-based approaches. Maintenance activities are no longer triggered by fixed intervals, but by the exceeding of defined condition thresholds.

Typical indicators include, for example, elevated temperatures or unusual vibrations. As a result, maintenance is more closely aligned with actual operating conditions and responds specifically to early signs of wear.

At the same time, this approach remains limited in its explanatory power. It indicates that a critical condition has been reached but does not provide a reliable forecast of the remaining useful life of a component. Therefore, forward-looking planning is only possible to a limited extent.

4. Predictive Maintenance

Predictive maintenance represents the most advanced form of maintenance and is based on the continuous collection and data-driven analysis of machine data.

Historical operating data, environmental conditions, maintenance histories, and current sensor values are combined to identify patterns in wear progression. On this basis, machine learning models calculate the remaining useful life (RUL), i.e., the remaining service life of a component.

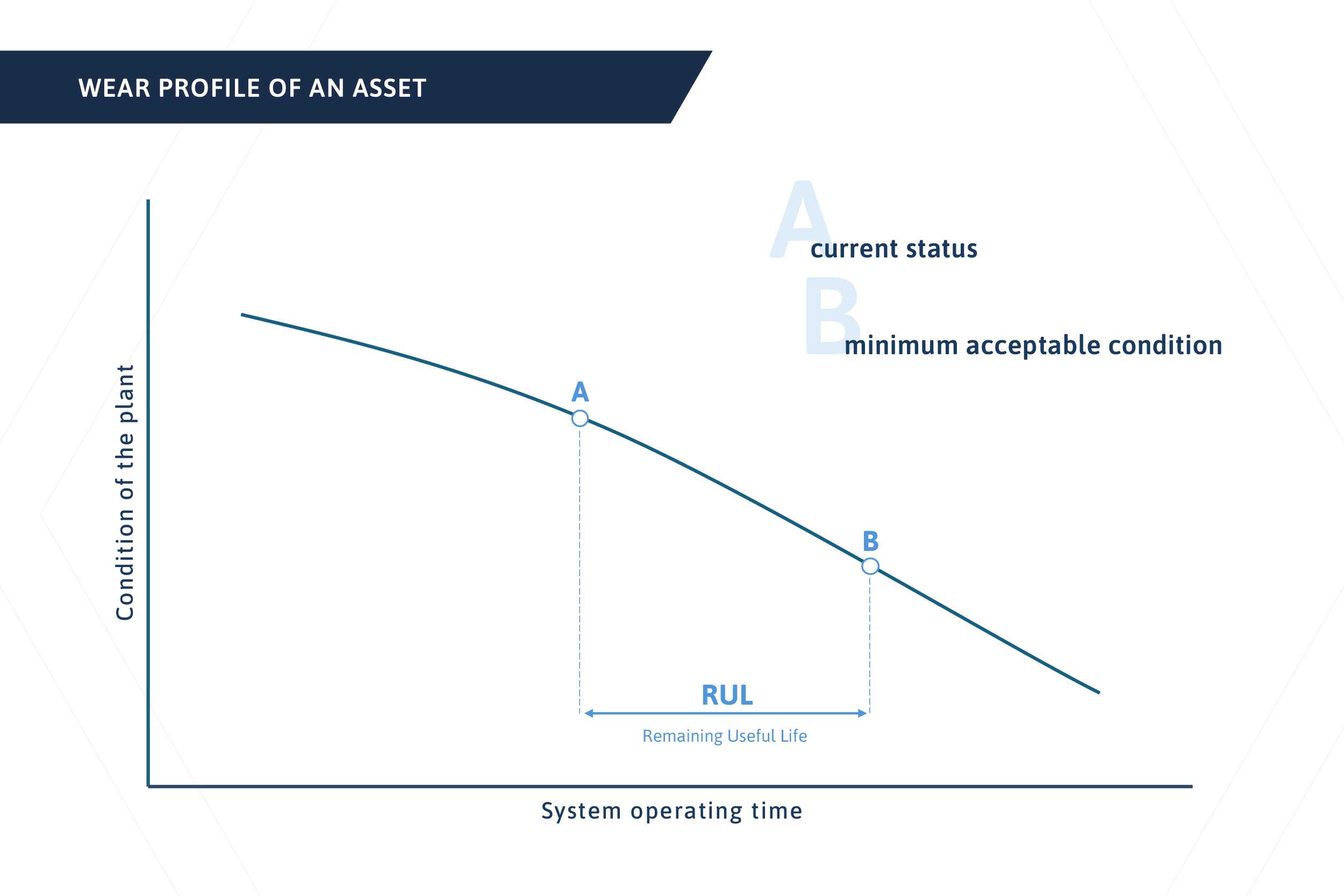

RUL describes the period between the current condition of the equipment and the minimum acceptable operating condition. This period defines the available window for a planned maintenance action.

As a result, maintenance activities can be carried out at the technically necessary and economically optimal point in time. Premature component replacements are avoided, and the risk of unplanned failures is significantly reduced.

5. Hybrid Strategy

In industrial practice, the hybrid maintenance strategy has proven to be the most economically viable approach. Critical components with a high risk of failure are continuously monitored and analyzed in a data-driven manner, while preventive or, in some cases, reactive measures continue to be applied to less critical components.

This differentiated approach enables a targeted allocation of investments based on the criticality of equipment components. Resources are deployed where they generate the greatest economic and operational benefit.

This results in a balanced relationship between technological effort and a sustainable increase in equipment availability, efficiency, and economic performance.

How Predictive Maintenance works?

Predictive maintenance is based on an integrated interplay of:

1. DATA ACQUISITION: Sensors – collection of condition data such as vibration, temperature, or pressure
2. CONNECTIVITY: Connectivity – transmission of data via IoT infrastructures
3. ANALYSIS: Analytics – evaluation using machine learning for pattern recognition and forecasting
4. ACTION: Decision-making – derivation of concrete maintenance measures

This creates a closed control loop that transforms maintenance from a reactive function into a data-driven management instrument.

Technologies & Systems

The described process logic illustrates how predictive maintenance operates in practice and how concrete maintenance decisions are derived from raw data. However, for this control loop to be effective in industrial practice, a robust technological foundation is required.

The implementation of predictive maintenance requires the seamless integration of multiple technological disciplines. Only their interaction enables a system that not only captures data but also translates it into business-relevant decisions.

• Internet of Things (IoT): IoT connects physical assets with digital infrastructure. Networked sensors continuously capture condition data such as vibration, pressure, or temperature and transmit it via industrial communication protocols to higher-level systems. This continuous data acquisition forms the foundation for any reliable forecast.
• Edge Computing: In modern production environments, large volumes of data are generated in a short time. Initial processing therefore takes place directly at the machine. Edge systems filter, aggregate, and prioritize data streams in real time, enabling critical deviations to be detected immediately without transmitting all data to central systems.
• Cloud Analytics: While edge systems are designed for speed, the cloud enables the scalable storage and analysis of large data volumes. This allows for cross-site evaluations, fleet analyses, and the identification of complex relationships between various influencing factors.
• Artificial Intelligence (AI) & Machine Learning (ML): AI forms the analytical core component. Unlike rule-based or traditional statistical methods, machine learning models continuously learn from historical operating and failure data. They identify complex, non-linear relationships and calculate both the probability of failure and the remaining useful life of components.

Only the coordinated interaction of these technologies transforms isolated machine data into an integrated, scalable system that manages maintenance in a data-driven manner and establishes it as a strategic value driver in production.

Business Value: Why Companies Should Use Predictive Maintenance

The implementation of predictive maintenance goes far beyond a technological upgrade. It represents a strategic competitive advantage that sustainably improves efficiency, cost structure, and risk profile.

The most immediate benefit lies in the significant reduction of unplanned downtime. Wear is detected at an early stage, allowing maintenance activities to be scheduled during low-production or non-production periods. As a result, emergency repair costs decrease, spare parts can be managed more efficiently according to demand, and the service life of capital-intensive equipment is maximized.

In addition to the economic benefits, predictive maintenance also improves workplace safety. Critical conditions are identified before they lead to hazardous failures, significantly reducing risks for operating personnel.

Against the backdrop of rising costs, volatile supply chains, and increasing technical complexity, predictive maintenance is becoming a strategic necessity. Companies aiming to sustainably improve equipment availability, efficiency, and cost structures cannot avoid a data-driven maintenance strategy. Overall, predictive maintenance transforms maintenance from a reactive cost factor into a proactive, value-creating driver of overall equipment effectiveness.

Making Efficiency Measurable: Key KPIs at a Glance

The value does not lie in individual sensors or algorithms, but in the measurable improvement of key performance indicators. Data-driven transparency replaces uncertainty, and structured planning replaces reactive action.

This becomes particularly evident in overall equipment effectiveness (OEE). It measures the actual productivity of a system and consists of availability, performance rate, and quality rate. In practice, it often falls below the theoretical optimum, as unplanned downtime reduces availability. Predictive maintenance addresses exactly this lever by identifying potential failures at an early stage and shifting maintenance activities into plannable time windows. As a result, the effective utilization time of the equipment increases.

Reliability also improves measurably. The mean time between failures (MTBF) increases, as disruptions are detected before they lead to downtime.

At the same time, the mean time to failure (MTTF) of individual components is extended, as actual wear becomes transparent. Components are not replaced as a precaution but are used until a technically safe and economically optimal point in time.

In addition to productivity and reliability, the cost structure of maintenance also changes fundamentally. Unplanned emergency interventions are among the most expensive actions in operations. Through predictive planning, spontaneous repairs are replaced by structured maintenance activities.

Another effect can be observed in spare parts logistics. Precise demand forecasts reduce inventory levels and thus capital tied up in stock. Spare parts are managed according to actual demand, while at the same time ensuring supply security for critical components.

From Prediction to Action: Predictive Maintenance in Production and Supply Chain

The value of predictive maintenance does not arise from data collection itself, but from translating insights into operational decisions. The decisive factor is which assets and components are truly critical for availability, quality, and delivery performance. In practice, the data-driven approach is therefore particularly worthwhile for bottleneck equipment, quality-critical processes, and components with long lead times.

The first lever lies in production control. Maintenance activities create economic value when they are planned early within production-compatible time windows and aligned with shift models, capacity utilization, and order volumes. In this way, a technical forecast becomes a planned action that does not interfere with operations but stabilizes them.

For this value to be effective in day-to-day operations, the generated data and the resulting measures must be embedded in shopfloor management. Critical condition deviations need to be made visible, prioritized, and translated into clear response patterns. Only the interaction between production control, maintenance, and shopfloor management ensures that data leads to a more stable process. This is particularly relevant where equipment conditions can result not only in downtime, but also in quality deviations, rework, or, in the worst case, defects at the customer level.

The Game Changer: Predictive Maintenance & Circular Economy

The circular economy marks a departure from the linear “take–make–waste” mentality. The objective is to preserve the value of products and materials for as long as possible. In this context, predictive maintenance serves as a technological backbone.

Instead of treating machines as consumables, predictive maintenance makes their actual condition transparent. It enables the two most important levers of circularity to be addressed: maximizing service life extension and achieving the highest level of resource efficiency. Maintenance thus evolves from a necessary burden into a strategic guardian of resources.

How Predictive Maintenance Supports the Circular Economy

The core contribution of predictive maintenance to the circular economy lies in its precision. While conventional maintenance often wastes resources, a data-driven approach supports environmental objectives on three levels:

• Avoidance of “premature disposal”: By analyzing actual wear, components are used up to their safe limits. Nothing is discarded simply because a calendar date dictates it.
• Minimally invasive interventions: Instead of replacing entire assemblies as a standard response to a defect, precise sensor data enables targeted repairs. This saves material and energy that would otherwise be required for the production of new spare parts.
• Prevention of total failures: A seemingly minor defect can develop into a major failure if left undetected, potentially leading to the shutdown of an entire system. Predictive maintenance identifies such early warning signs in time and prevents a minor component issue from escalating into a costly technical and economic failure.

Predictive Maintenance as a Circular Business Model

PdM also enables the implementation of new, sustainable business models. The condition data generated during operation provides transparency regarding usage, load, and component lifespan, thereby becoming a strategic resource within the product life cycle:

• Secondary market and resale: A comprehensive, data-based maintenance record increases transparency regarding the actual condition of a machine. For potential buyers, this reduces information asymmetries and enhances resale value. Machines can be more reliably transferred into a second or third usage cycle.
• Prerequisite for remanufacturing: For industrial remanufacturing, it is crucial to understand the actual level of stress experienced by individual components. Condition data provides a reliable basis for deciding which parts can be refurbished and reused. This enables more efficient use of materials instead of prematurely recycling or replacing them.
• Product-as-a-Service: When manufacturers no longer sell machines but their usage, responsibility for availability and lifespan shifts accordingly. Predictive maintenance enables assets to be managed proactively and maintained at a high performance level over the long term.

Insights from EFS Consulting Experts: From Data to Operational Impact

Our project experience shows that the greatest leverage of predictive maintenance does not lie in comprehensive sensor deployment, but in focusing on truly critical assets. Particularly in bottleneck processes, under high utilization, or in quality-critical production steps, downtime can be avoided more effectively and maintenance activities can be better integrated into ongoing operations. In this way, predictive maintenance improves not only technical availability but also the overall predictability of production.

EFS Consulting supports companies in making relevant data usable, planning measures proactively, and integrating predictive maintenance into existing processes and shopfloor management structures. The value does not arise from data alone, but from its effective translation into priorities, decisions, and operational control.

At the same time, the transparency gained through predictive maintenance regarding usage, load, and remaining useful life creates a reliable data foundation for the circular economy. It thus becomes a key enabler for more robust economic evaluation and implementation of life extension, remanufacturing, and circular business models.

The objective is not to view predictive maintenance as an isolated project, but as an integrated component of an economically viable and sustainable strategy.

Conclusion

Predictive maintenance is far more than an evolution of traditional maintenance. It shifts the focus from reactive repair to data-driven control and strategic value creation.

At the same time, predictive maintenance creates transparency regarding usage, load, and remaining useful life—a key prerequisite for durable products, remanufacturing strategies, and circular business models.

Companies seeking to simultaneously improve equipment availability, economic performance, and circularity can no longer avoid an integrated, data-driven maintenance strategy. Predictive maintenance is not a short-term trend, but a structural building block of future-ready industry.

FAQs

What is Predictive Maintenance?

Predictive maintenance is a proactive maintenance approach in which potential machine failures are anticipated, allowing maintenance activities to be planned in advance.

What is Maintenance?

Maintenance encompasses all technical and organizational measures aimed at preserving or restoring the functionality of machines or equipment.

What are the four types of maintenance?

The four classical types of maintenance are reactive, preventive, condition-based, and predictive maintenance. In practice, however, these approaches are often combined in hybrid strategies to ensure economically efficient management depending on the criticality of assets and components.

How does Predictive Maintenance contribute to the circular economy?

Through data-driven life extension, targeted repair, and the reduction of unnecessary material consumption, predictive maintenance supports key principles of the circular economy.
